Model

Emission

Color

Forward Voltage

IF=3X350mA

Wavelength

IF=3X350mA

Luminous Flux

IF=3X350mA

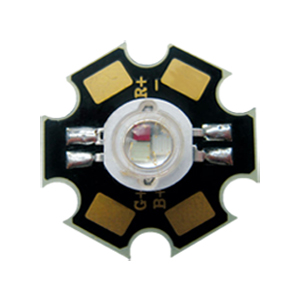

WSD-HP3A140RGB-01

Red

2.0~2.8V

620~630nm

40~50Lm

Green

3.0~3.8V

515~525nm

70~80Lm

Blue

3.0~3.8V

460~470nm

20~30Lm

Other Spec

Dimension

20X21X7.4mm

50% Power Angle

140deg

Power Dissipation

3W

Forward Current

3X350mA

Peak Forward Current

3X1050mA

Reverse Voltage

5V

Electrostatic Discharge

2000~3000V

Operating Temperature

-20~80℃

Storage Temperature

-40~85℃

Soldering Temperature

Max. 260℃ for 5 sec Max.

Notes: specifications are for reference only, specification subjected to change without prior notice.
