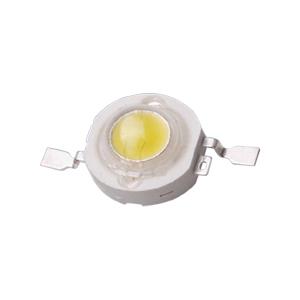

Name: 3W UV High Power LED

  • Parameter
  • Message
  • Related Products

Model

Emission

Color

Forward Voltage

IF=750mA

Wavelength

IF=750mA

Luminous Flux

IF=750mA

WSD-HP3A140UV25-02

Ultraviolet

3.2~3.8V

395~405nm

20~30Lm

Other Spec

Dimension

14.6X8X5.3mm

50% Power Angle

140deg

Power Dissipation

3W

Forward Current

750mA

Peak Forward Current

2250mA

Reverse Voltage

5V

Electrostatic Discharge

2000~3000V

Operating Temperature

-20~80

Storage Temperature

-40~85

Soldering Temperature

Max. 260 for 5 sec Max.

Notes: specifications are for reference only, specification subjected to change without prior notice.

  • *
  • *
  • *
  • *
  • *
