Model

Emission

Color

Forward Voltage

IF=3X20mA

Wavelength/CCT

IF=3X20mA

Luminous Intensity

IF=3X20mA

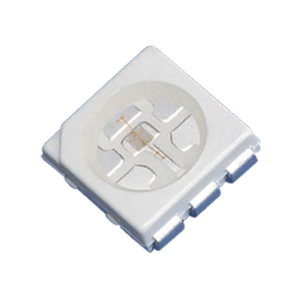

WSD-5050A120RGB-01

Red

1.8~2.2V

620~630nm

600~800MCD

Green

3.0~3.4V

515~525nm

1000~1200MCD

Blue

3.0~3.4V

460~470nm

400~600MCD

Other Spec

Dimension

5.0X5.0X1.6mm

50% Power Angle

120deg

Power Dissipation

0.2W

Forward Current

3 X20mA

Peak Forward Current

3 X100mA

Reverse Voltage

5V

Electrostatic Discharge

2000~3000V

Operating Temperature

-20~80℃

Storage Temperature

-40~85℃

Soldering Temperature

Max. 260℃ for 5 sec Max.

Notes: specifications are for reference only, specification subjected to change without prior notice.
