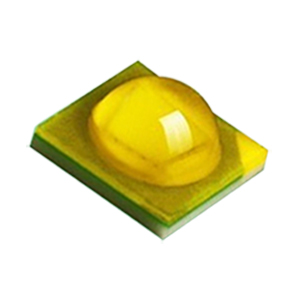

Name: 1W 3535 SMD LED

  • Parameter
  • Message
  • Related Products

Model

Emission

Color

Forward Voltage

IF=350mA

Wavelength/CCT

IF=350mA

Luminous Flux

IF=350mA

WSD-3535A120W110-01

Warm White

3.0~3.4V

2700~3500K

100~120Lm

WSD-3535A120W110-02

Pure White

3.0~3.4V

4000~4500K

100~120Lm

WSD-3535A120W110-03

Cool White

3.0~3.4V

6000~7000K

100~120Lm

Other Spec

Dimension

3.5X3.5X2.0mm

50% Power Angle

120deg

Power Dissipation

1W

Forward Current

350mA

Peak Forward Current

1050mA

Reverse Voltage

5V

Electrostatic Discharge

2000~3000V

Operating Temperature

-20~80

Storage Temperature

-40~85

Soldering Temperature

Max. 260 for 5 sec Max.

Notes: specifications are for reference only, specification subjected to change without prior notice.

  • *
  • *
  • *
  • *
  • *
