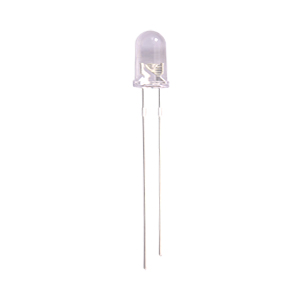

Model

Emission

Color

Forward Voltage

IF=20mA

Wavelength/CCT

IF=20mA

Luminous Intensity

IF=20mA

WSD-D5A60R2500-01

Red

1.8~2.2V

620~630nm

2000~3000MCD

WSD-D5A60Y2500-01

Yellow

1.8~2.2V

585~595nm

2000~3000MCD

WSD-D5A60B2500-01

Blue

3.0~3.4V

460~470nm

2000~3000MCD

WSD-D5A60G4500-01

Green

3.0~3.4V

515~525nm

4000~5000MCD

WSD-D5A60W5500-01

Warm White

3.0~3.4V

2700~3500K

5000~6000MCD

WSD-D5A60W5500-02

Pure White

3.0~3.4V

4000~4500K

5000~6000MCD

WSD-D5A60W5500-03

Cool White

3.0~3.4V

6000~7000K

5000~6000MCD

Other Spec

Dimension

5mm

50% Power Angle

60deg

Power Dissipation

60mW

Forward Current

20mA

Peak Forward Current

100mA

Reverse Voltage

5V

Electrostatic Discharge

2000~3000V

Operating Temperature

-20~80℃

Storage Temperature

-40~85℃

Soldering Temperature

Max. 260℃ for 5 sec Max.

Soldering Distance

>5mm

Notes: specifications are for reference only, specification subjected to change without prior notice.
