Model

Emission

Color

Forward Voltage

IF=150mA

Wavelength/CCT

IF=150mA

Luminous Flux

IF=150mA

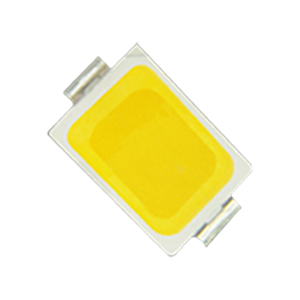

WSD-5730A120W55-01

Warm White

3.0~3.4V

2700~3500K

50~60Lm

WSD-5730A120W55-02

Pure White

3.0~3.4V

4000~4500K

50~60Lm

WSD-5730A120W55-03

Cool White

3.0~3.4V

6000~7000K

50~60Lm

Other Spec

Dimension

5.7X3.0X0.9mm

50% Power Angle

120deg

Power Dissipation

0.5W

Forward Current

150mA

Peak Forward Current

450mA

Reverse Voltage

5V

Electrostatic Discharge

2000~3000V

Operating Temperature

-20~80℃

Storage Temperature

-40~85℃

Soldering Temperature

Max. 260℃ for 5 sec Max.

Notes: specifications are for reference only, specification subjected to change without prior notice.
